100W LED tunnel lighting fixture

Location:Index--->Product Center >> 3030 LED Tunnel lights >> 100W LED tunnel lighting fixture

Name:	100W LED tunnel lighting fixture
Input	AC85V-265V, 50Hz-60Hz
LED	USA Cree 3030
Driver	Meanwell
CCT	2700K-3500K, 4500K-5500K, 6000K-7000K
Color index	Ra80
Lead time	7-12ays

Product Detail

100W LED tunnel lighting fixture

Tunnel lighting schemes require a high minimum illuminance to provide a safe environment for users. The luminaires must be capable of delivering high levels of light at a considerable distance from the plane. Typical mounting height in road tunnels is 5–7m (16.4–23.0 ft) to provide clearance for high-sided vehicles. 100W LED tunnel lighting fixture with Cree/Osram/Philips 3030 LED and 100-110LPW output, as well as Meanwell LED driver with 5 years warranty, is nice equivalent and replacement of conventional HID or HPS tunnel lighting fixtures. Although, HPS and MH luminaires offer tunnel lighting scheme designers an attractive combination of low unit cost, high illuminance, and proven mechanical construction. Arrays of HPS and MH luminaires typically rate up to 400W per fixture to satisfy the illuminance requirement.

IP65

3000K, 4000K, 5000K, 6000K

Tempered glass cover, Beam in 60°, 90°, 60*150°, optional

Angle in 60*150° can be used as advertising board lighting

Angle in 60° can be used as high bay lighting

Angle in 60° or 90° can be used as tunnel lighting

Meanwell LED driver with 5 years arranty

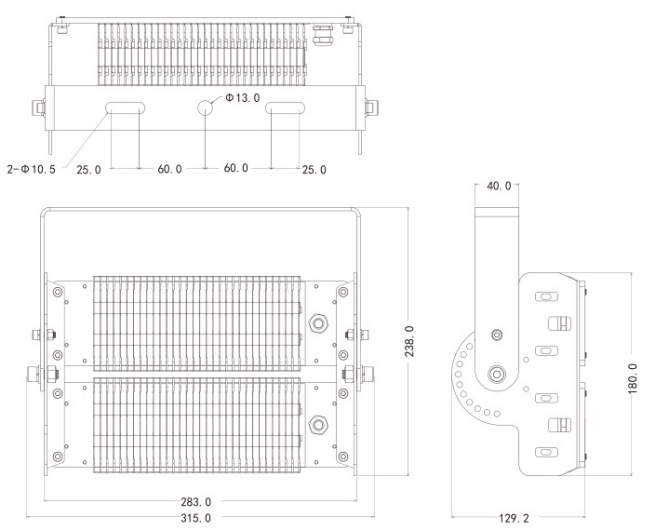

Size of the lighting fixture

Details of the tunnel lights

Item	100W LED tunnel lighting fixture
Input voltage	AC85V-265V
Frequency range	50Hz-60Hz
Total harmonic distortion	≤9%
Power factor	＞0.95
LED quantity	96PCS
LED power consumption	100W
LED lamp output lumen	100-110LM/W
Warm white	3000K
Pure white	4000K
Neutral White	5000K
Cool white	6000K
Color index	Ra＞80
Work environment	-30℃—+60℃
Storage environment	-40℃—+65℃
Protection class	IP65
LED lifespan	＞50,000hrs
Brown	L (live line)
Blue	N (null line)
Yellow or Green	G (ground line)
Size	L315W238H130mm
Packing	340×250×160mm
Gross Weight	5KG

LED tunnel lighting fixtures are suitable for tunnels, workshop, factory, warehouse, highway toll station, gas station, shopping mall, supermarket, exhibition hall, gymnasium and so on
