LED Tri-proof Light PTM 600/1200/1500mm
Location:Index--->Product Center >> LED Tri-proof Lights >> LED Tri-proof Light PTM 600/1200/1500mm
| Name: | LED Tri-proof Light PTM 600/1200/1500mm |
|---|---|
| Input | AC100-277V, 50Hz-60Hz |
| LED | 2835 SMD |
| CCT | 2700K-3500K, 4500K-5500K, 6000K-7000K |
| Lead time | 7-12days |
| Certificate | CE RoHS |
| Warranty | 5 years |
Product Detail

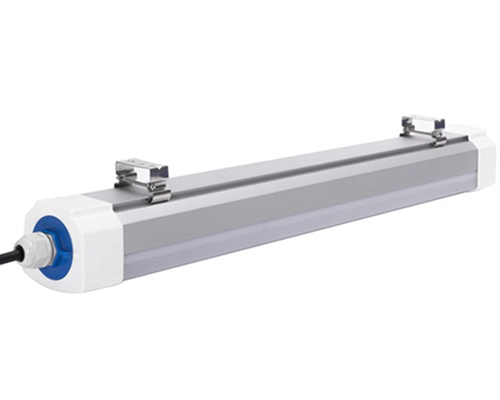

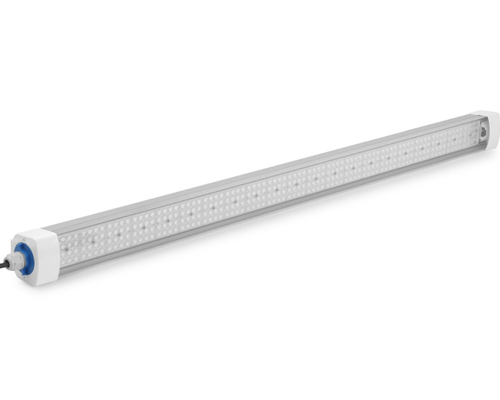

LED Tri-proof Light 600/1200/1500mm

LED linear lighting is more energy-efficient and longer life, compared with fluorescent tube lights.It is with high brightness but low heat, which can be instantaneous illumination as well as directional lighting. LED Tri-proof Light 600/1200/1500mm come with 1.35mm thickness High-impact 6063 aluminum alloy shell and PC diffuser, IP65 Water-proof, Dust-Proof, Moisture-proof and High Impact IK10, which are welcomed for Warehouse, factories, supermarket, library, gym, airport, hotel and so on.

Features:
1. IP65 Water-proof, Dust-Proof and Moisture-proof
2. High Impact IK10 Test

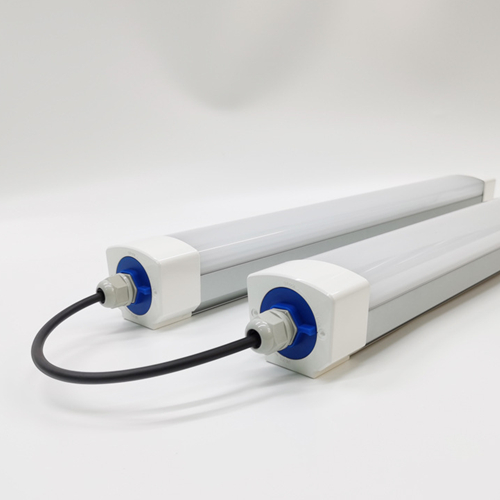

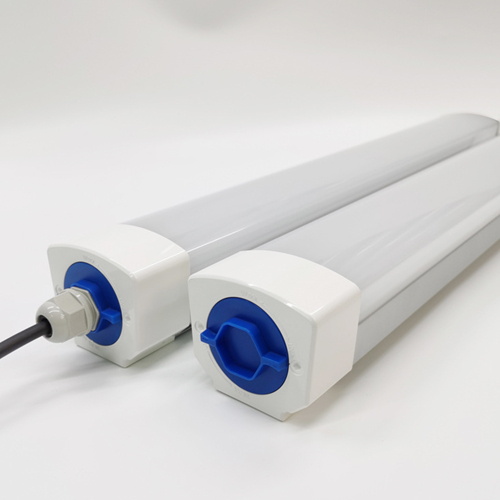

3. Easy for series connection, ideal products for saving Labor cost
4. Epistar SMD2835, CRI>0.83, standard 100lm/w-110lm/w or premium 130lm/w-140lm/w
5. Microwave Sensor, 0/1-10V,DALI Dimmable , Emergency , function are available
6. With ENEC/UL/SAA No Flickering Led Power Supply, 5 years warranty
7. Available with 1500px (20/30W), 2250px (40w), 3000px (40/60w) and 3750px (60/80w)

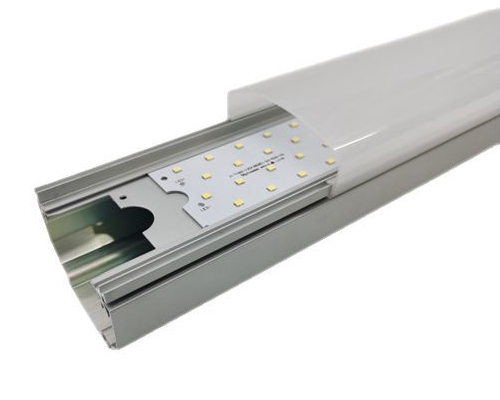

Structure of the fixture, 1.35mm 6063 aluminum + PC diffuser

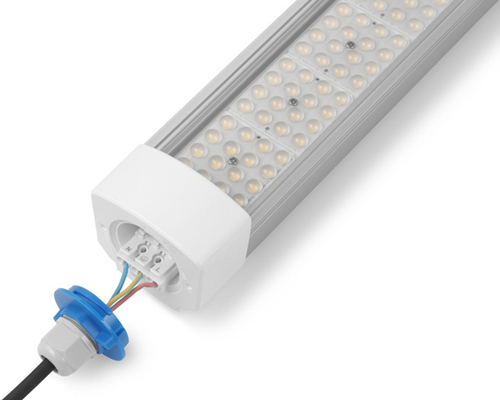

LED Tri-proof Tube is also available with high bright 2835 SMD and lens in 30°, 60°, 90° and 120° optional

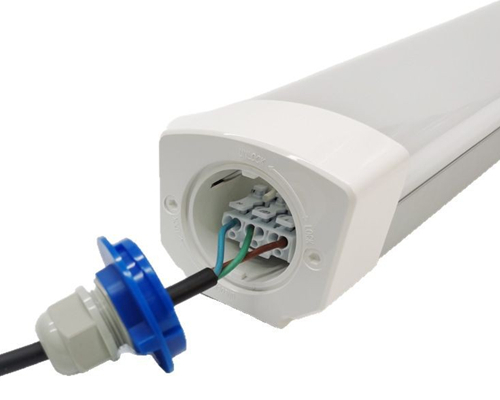

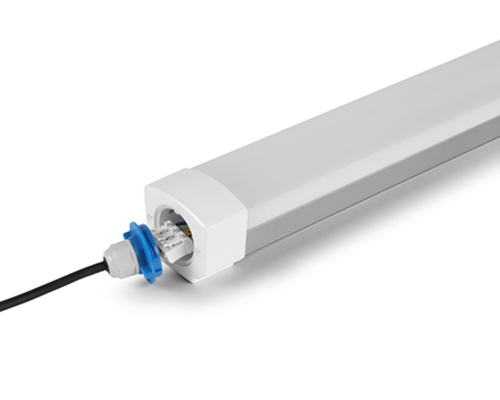

3*18AWG UL/3*1.0mm2, VDE listed rubber cable Max series linkable 2000w.


|
Item |
LED Tri-proof Light 600/1200/1500mm |
|||||
|
PN. |
PTM-20W2F |
PTM-40W4F |
PTM-60W5F |
|||
|
Size |
600*76*67mm |
1200*76*67mm |
1500*76*67mm |
|||
|
Power |
20W |
30W |
40W |
60W |
60W |
80W |
|
Output |
2600 LM |
3900 LM |
5200 LM |
7800 LM |
7800 LM |
10,400 LM |
|
Bean Angle |
120° |
|||||
|
CRI |
>83 |
|||||
|
Input |
100-277V / 220-240V |
|||||
|
CCT |
3000K/4000K/5000K/6000K, SDCM<4 |
|||||
|
Efficiency |
130LM/W (typical), 150LM/W, 165LM/W |
|||||
|
Material |
1.35mm 6063 aluminum + PC diffuser |
|||||
|
Warranty |
5 years |
|||||

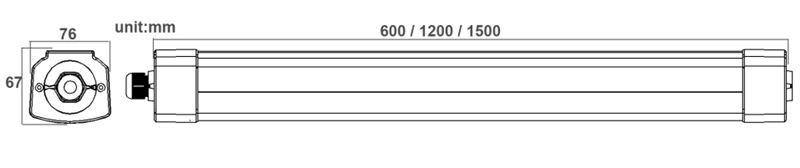

Demansion in mm

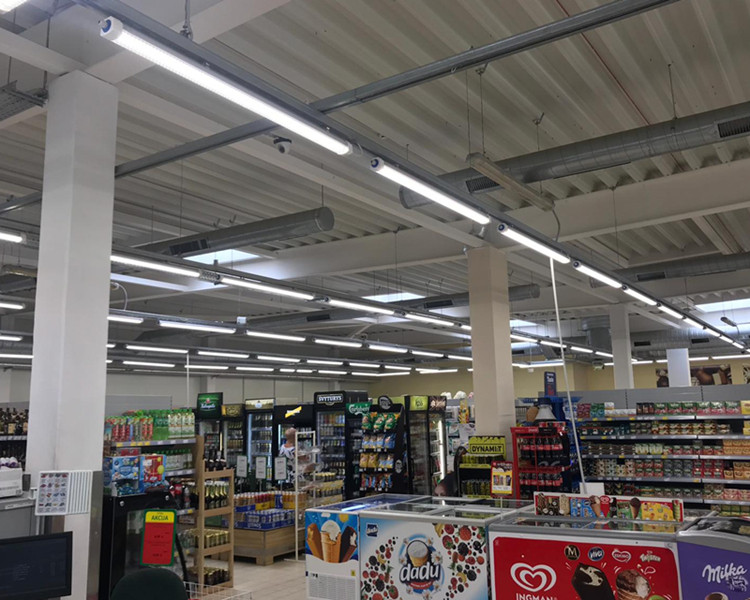

The LED tri-prrof lighting fixtures are welcomed for Warehouse, factories, supermarket, library, gym, airport, hotel and so on.
