150W LED Flood lighting

Location:Index--->Product Center >> 3030 LED Tunnel lighting >> 150W LED Flood lighting

Name:150W LED Flood lighting
InputAC100-277V, 50Hz-60Hz
LEDPhilips 3030LED
DriverMeanwell
CCT2700K-3500K, 4500K-5500K, 6000K-7000K
Color indexRa80
Lead time7-12ays
Warranty5 years

Product Detail

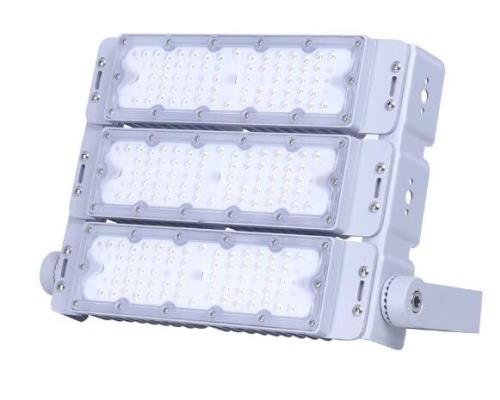

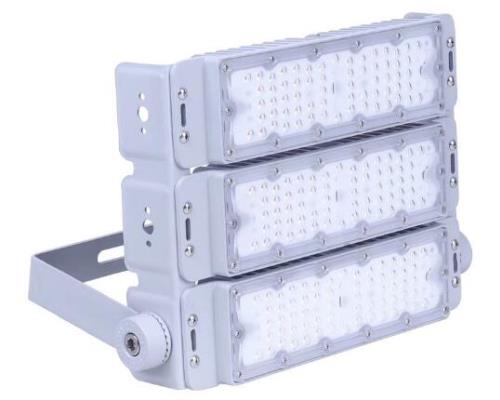

150W LED Flood lighting fixture

Tunnel lighting schemes require a high minimum illuminance to provide a safe environment for users. The luminaires must be capable of delivering high levels of light at a considerable distance from the plane. Typical mounting height in road tunnels is 5–7m (16.4–23.0 ft) to provide clearance for high-sided vehicles. 150W LED Flood lighting fixture with Cree/Osram/Philips 3030 LED and 120-130LPW output, as well as Meanwell LED driver with 5 years warranty, is nice equivalent and replacement of conventional HID or HPS tunnel lighting fixtures. Although, HPS and MH luminaires offer tunnel lighting scheme designers an attractive combination of low unit cost, high illuminance, and proven mechanical construction.

IP65

3000K, 4000K, 5000K, 6000K

Tempered glass cover, Beam in 30°, 60°, 90°, 60*120°, and 30*70°, optional

Angle in 60*120° can be used as advertising board lighting
Angle in 60° can be used as high bay lighting
Angle in 60° or  90° can be used as tunnel lighting

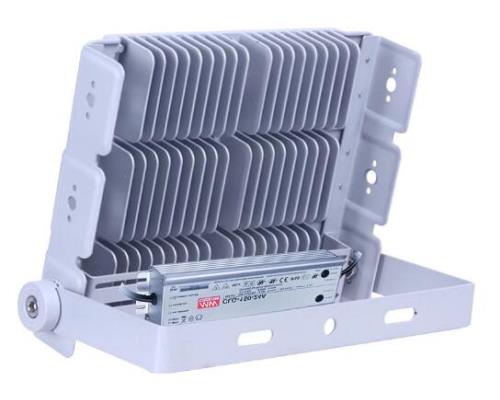

Meanwell LED driver with 5 years arranty

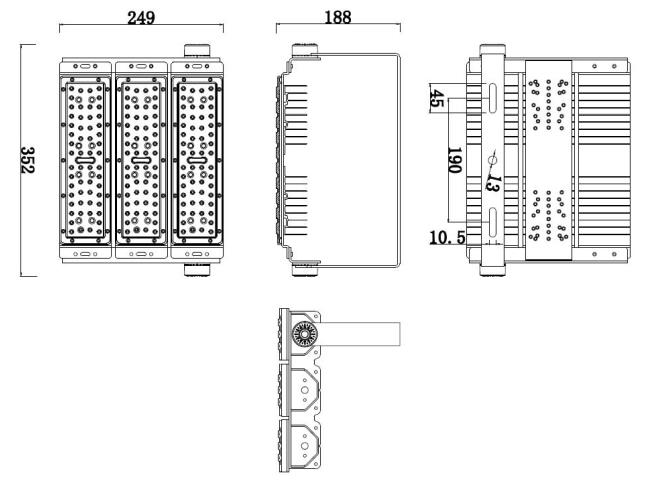

Size of the lighting fixture

Details of the tunnel lights

Item

150W LED Flood lighting fixture

Input voltage

AC85V-265V

Frequency range

50Hz-60Hz

Total harmonic distortion

9%

Power factor

0.95

LED quantity

144PCS

LED power consumption

150W

LED lamp output lumen

120-130LM/W

Warm white

3000K

Pure white

4000K

Neutral White

5000K

Cool white

6000K

Color index

Ra80

Work environment

-30℃—+60

Storage environment

-40℃—+65

Protection class

IP65

LED lifespan

50,000hrs

Brown

L (live line)

Blue

N (null line)

Yellow or Green

G (ground line)

Size

352*249*188mm

Packing

295*360*135mm

Gross Weight

2.5KG

LED tunnel lighting fixtures are suitable for tunnels, workshop, factory, warehouse, highway toll station, gas station, shopping mall, supermarket, exhibition hall, gymnasium and so on
