9W LED Drain Plug light

Location:Index--->Product Center >> Underwater Boat Lights >> 9W LED Drain Plug light

Name:9W LED Drain Plug light
LEDTaiwan
IPIP68
WarrantyOne years
CertificatesCE RoHS
Lead Time7-15days

Product Detail

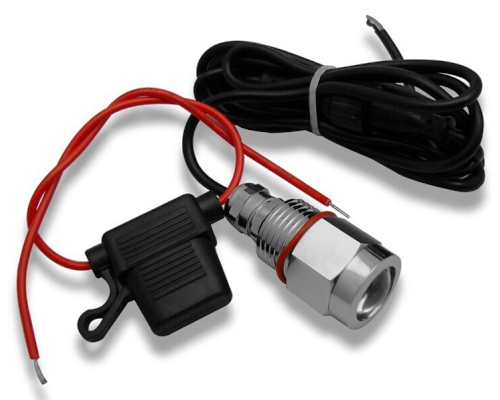

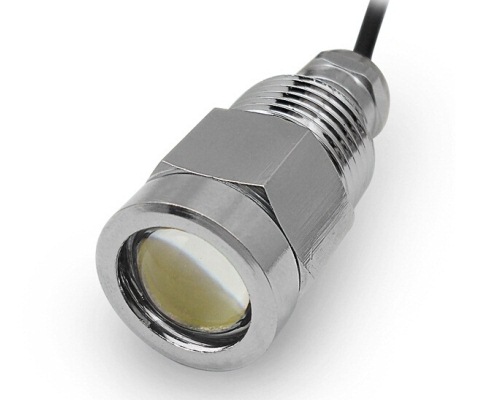

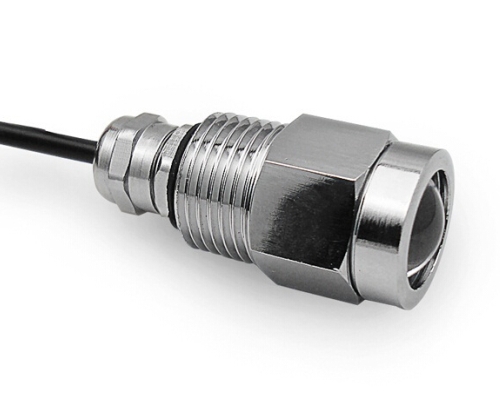

9W LED Boat drain plug light

The 9W LED Boat drain plug light with bronze as housing and an super high output of 750LM, as well as 8-28V DC input, is an ideal replacement of 60-70W halogen in boats, at 70% less electricity and last much longer.


Fully waterproof for marine applications, IP68



Product Features:

1. NEVER worry about water leaking, with its IP68 waterproof rating;
2. Easily replace the exsiting 1/2" drain plug on the boat, no need to drill holes on boat;
3. Simply screw into the 1/2" threaded entry and connect wires to a switch
4. Quick Disconnect and remove with plug in& out waterproof connector (optional);
5. Install for both small and large boat with DC8-28V built-in driver;
6. All colors are available, like white, red, yellow, green, blue.Fully waterproof for marine applications, IP68
Details of the lights

9W LED Boat drain plug light

Product Code

PML-9W

Input Voltage

8-28VDC

Light Output

750LM (white)

Power

9W

Color

White (6500-7500K), red, yellow, green, blue.

Size

Dia. 25*55.5 mm

Material

Bronze

CRI

80

Environment

-40ºC~+60ºC

Expected Life

50,000Hours

Certifications

CE and RoHS

How to install it?


1. Loosen the drain plug.

2. Run the cable leads thru the garboard drain opening and screw the drain plug light assembly into the existing garboard fitting. The garboard fitting is 1/2" NPT.

3. Connect the light wire to a 12 VDC or 24 VDC on/off switch. Plug in the waterproof connector if there is one.

4. Attach the red lead to Positive (+) with the included in line 3 AMP assembly fuse and the black lead to the Negative (-)

5. Switch on the light to check if it works well.

They are perfect for boats, yachts or other underwater applications
