27W LED Drain Plug light IP68

Location:Index--->Product Center >> Underwater Boat Lights >> 27W LED Drain Plug light IP68

Name:27W LED Drain Plug light IP68
Input8-28V DC
WarrantyOne years
CertificatesCE RoHS
Lead Time7-15days

Product Detail

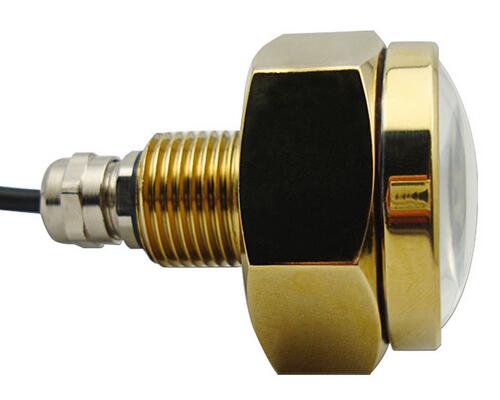

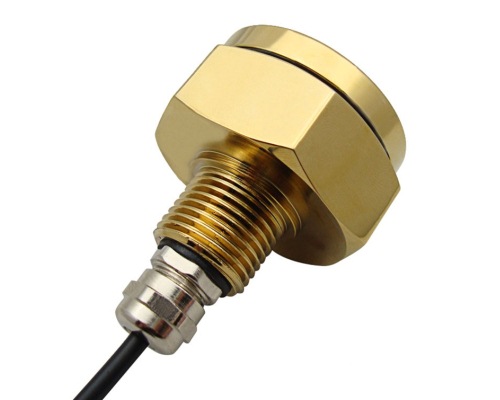

27W Underwater LED Boat drain plug light

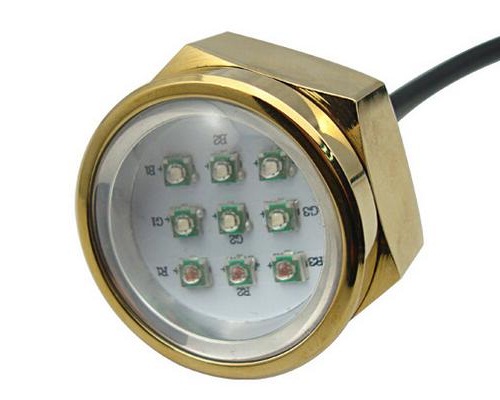

This 27W Underwater LED Boat drain plug light utilizing 9pcs 3W USA Cree LED, as well as superior design and craftsmanship , is perfect for attracting bait fish night diving for lobster or just your nighttime enjoyment.

They are Titaninum Aluminum Alloy as housing, and with high IP rate of IP68, can be fully waterproof for marine applications.

Titaninum Aluminum Alloys have very high tensile strength and toughness (even at extreme temperatures). They are light in weight, have extraordinary corrosion resistance and the ability to withstand extreme temperatures.

Product Features:

1. NEVER worry about water leaking, with its IP68 waterproof rating, anti-dust,anti-collosion,anti splash-wet

2. Easily replace the exsiting 1/2" drain plug on the boat, no need to drill holes on boat;

3. Simply screw into the 1/2" threaded entry and connect wires to a switch;

4. Quick Disconnect and remove with plug in& out waterproof connector (optional);

5. Install for both small and large boat with DC8-28V built-in driver;

6. All colors are available, like white, red, green, blue, and RGB

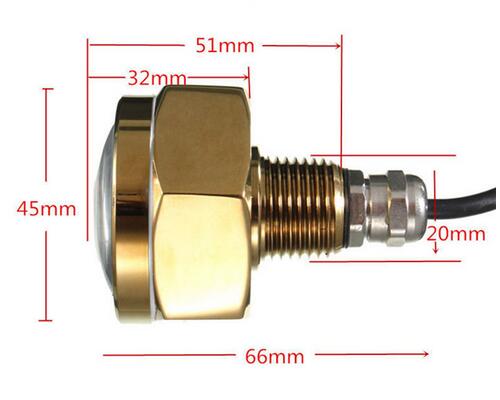

Size in mm of 27W LED Boat  drain plug light

Details of the lights

27W Underwater LED Boat drain plug light

Product Code


Input Voltage


Light Output

1800LM, green with 1500LM and blue with 400LM




White (6500-7500K), red, green, blue.


49*45 mm


Titaninum Aluminum Alloy





Expected Life



CE and RoHS

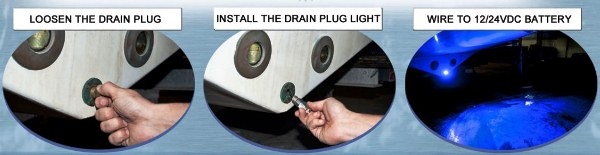

How to install it?

1. Loosen the drain plug.

2. Run the cable leads thru the garboard drain opening and screw the drain plug light assembly into the existing garboard fitting. The garboard fitting is 1/2" NPT.

3. Connect the light wire to a 12 VDC or 24 VDC on/off switch. Plug in the waterproof connector if there is one.

4. Attach the red lead to Positive (+) with the included in line 3 AMP assembly fuse and the black lead to the Negative (-)

5. Switch on the light to check if it works well.

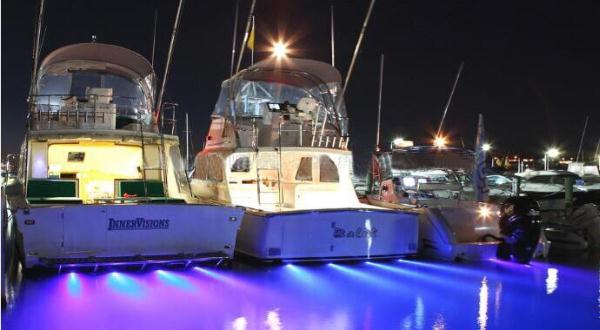

They are perfect for boats, yachts or other underwater applications
