50W LED Street Lights
Location:Index--->Product Center >> LED Street Lights >> 50W LED Street Lights
Name: | 50W LED Street Lights |
---|---|
Input | AC85V-265V, 50Hz-60Hz |
LED | Philips 3030LED |
Driver | Meanwell |
CCT | 2700K-3500K, 4500K-5500K, 6000K-7000K |
Color index | Ra70 |
Lead time | 7-12ays |
Warranty | 5 years |
Product Detail

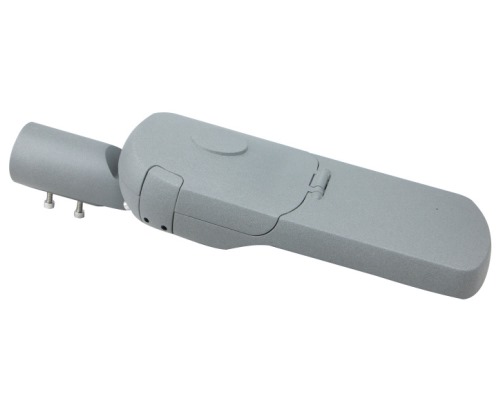

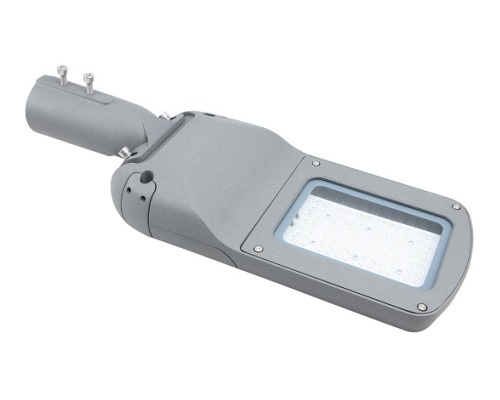

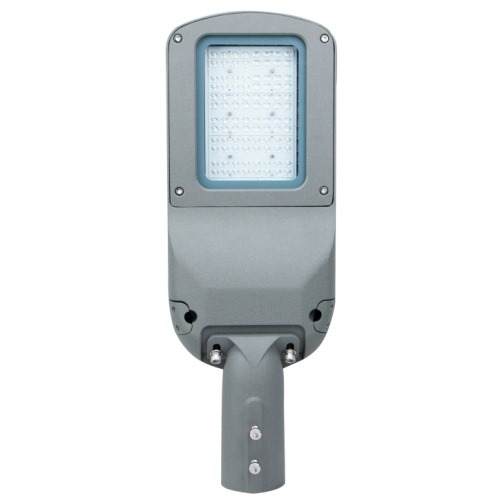

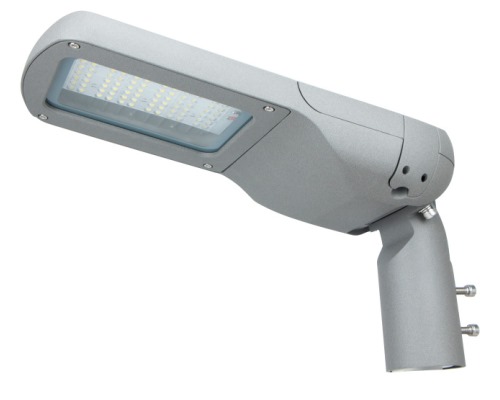

50W LED Street Lights
Prime 50W LED street light fixture with Philips 3030 LEDs as lighting source and Meanwell LED driver, 130-140LPW, is designed for both new installation and facilities currently using HID cobra head style fixtures. These commercial/outdoor LED street light offers outstanding long-life reliability to dramatically reduce energy and maintenance costs.

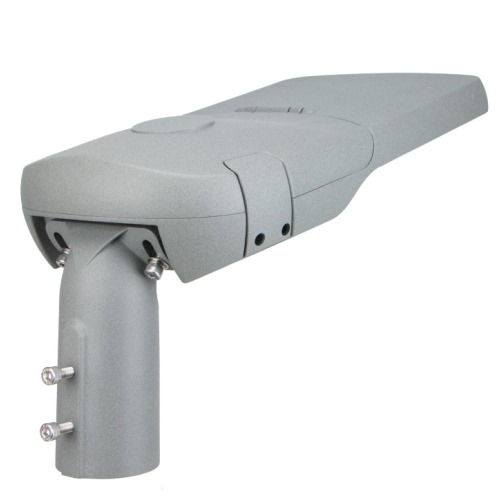

Standard equipped with a 68 mm pole connector, IP65
High-grade aluminum alloy A360 housing with high-durability powder coating
Adjustable holder
Specail designed optics maximize light distribution and placement with exceptional, low-glare illumination on the intended area, while minimizing light trespass into nearby homes and businesses.
IESNA TYPE II
Optimised for ME and S road classes and narrow roads
Pole height 4-6m, pole spacing from 20-30m (S classes), and height from 7-12m, spacing from 30-40m (ME classes)
IESNA TYPE III
Optimised for ME road classes and wider roads
Pole height from 7-12m, pole spacing from 25-45m
Sensor swithch is also available, if needed.
Light ON when night comes and OFF when morning comes.
![](/data/attachment/201909/18/fe3e42e29a0f1a7125044183d77817df.jpg)
![](/data/attachment/201909/19/098199eaf8c5800416abdb33525287c7.jpg)
Item |
50W LED Street Lights |
Operating Voltage |
AC100-277V |
Driver |
Meanwell XLG |
LED |
Philips 3030LED |
Qty |
96pcs |
LED Luminous Efficiency |
130-140lm/w |
Initial Luminous Flux |
7,800-8,400LM |
CRI |
Ra> 70 |
CCT |
3000/4000/5000/6000K |
Operating Temperature |
-40ºC to 50ºC |
Operating Humidity |
10%~90%RH |
Power Factor (PF) |
> 0.95 |
Driver Efficiency |
> 90% |
IP Rating |
IP65 |
Guarantee |
5 Years Warranty |
Heat part |
Aluminum alloy |

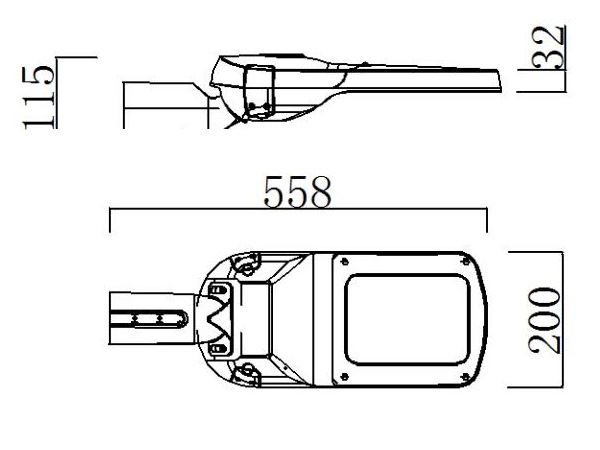

Fixture size |
558*200*115mm |
Packing size |
61*26*13.5cm |
Fixture Weight |
4.0kg |
![](/data/attachment/201909/19/2186f22ef6eac98837ad4c3465e5a666.jpg)
