120W LED Wall Pack Light

Location:Index--->Product Center >> Osram LED Wall Packs >> 120W LED Wall Pack Light

Product Detail

120W LED Wall Pack Light

We offer size by 366*226*196mm 120W LED Wall Pack Light with Meanwell LED driver and Samsung LED as lighting source,to keep a good quality wall light for you. They are welcomed as wall lighting for Factory workshop, Gym and industrial area.



3000K, 4000K and 5000K, optional



Size by 366*226*196m

Features:

1.Funnelled structure makes better heat releasing with the lights;

2.Optial Lens makes light distribution fully for wall needs;

3.LED driver is separated from LED, which lead easier maintance, if needed;

4.Samsung LED and Meanwell make a quality wall packs

Deatils of the wall lighting fixtures

Item	120W LED Wall Pack Light
Part NO:	PWP-120W72X/PWP-120W264X
Wattage	120W
Lumens	10200LM
LED	120pcs Osram 3030 SMD
Driver	Meanwell
Power Fact	＞0.9
Beam Angle	100*110
OP. Frequency	50-60HZ
Input Voltage Range	100-277V AC
Luminous Efficiency	80LM/W
Color Rendering Index	＞70
Housing Color	Black
IP Rating ;	IP65
Warranty	3Years



Packing with One light in a foma, then k=k carton

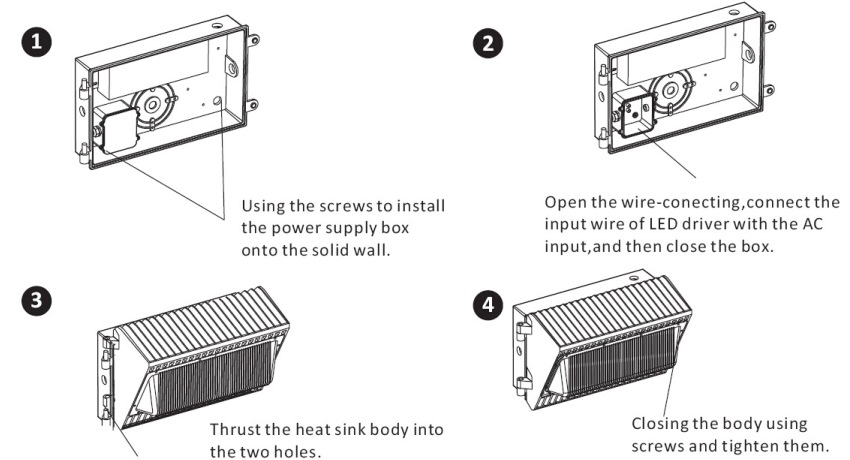

How to install the 120W LED Wall Packs?

Quality Control:

All Prime LED lights after production completed will be under a testing and aging(keep lighting) of 24 hours at least, to ensure their reliability.

A final testing after the long hours testing and aging will be done before the packing, to ensure nothing in wrong and well-working in customer's end.



How to order samples?

1,Samples are available at your costs;

2,You tell us which items, color and quantity you want;

3,We will issue a Performa invoice for the samples order;

4,Production will go, if we do not have the stocks, after your payment by TT /Western Union;

5.Lead time would be about 7-12days;

6,Samples will be sent out by DHL or UPS, as you like
